Al09 Industrial Heavy Duty Linear Actuator
Specifications:
Input voltage: 12/24/36VDC
Max. Load : 7000N
Stroke: 50/100/150/200/250/300mm, can produce as your request.

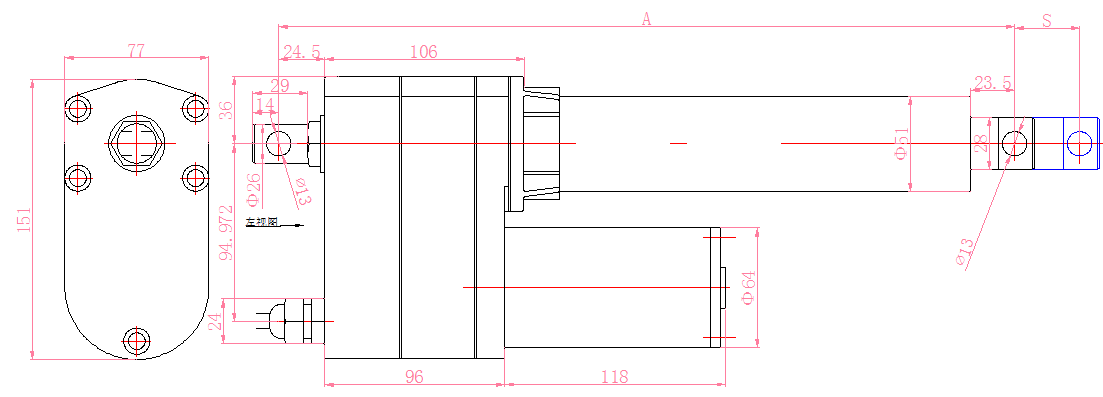

Mini. Install size: L= S + 250mm
Max. Speed : 60mm/s
Rated load speed: 5mm/s(7000N); 60mm/s(500N)
Temperature :-26℃ to 65℃
Protection class: IP65
Limit switch: inner
Potentiometer option
