Al04d42 42mm Diameter Tube Linear Actuator
Specifications :
Input voltage: 12VDC or 24VDC
Size : diameter 42mm
Stroke :50mm/100mm/150mm/200mm/250mm,can make as your request.
Mini.installation dimension: stroke+265mm
Build-in integral limit switch, not adjustable after leaving factory.
Duty cycle : 10%, 2 minutes on/18 minutes off
Operational temperature: -26℃ to 65℃
IP class: IP56
Noise: ≤52dB
Certificates: CE & RoHS
Max. Load: 2000N
Non-load speed:5.5mm/s
Load speed:4.5mm/s
Install holes: ¢ 10mm

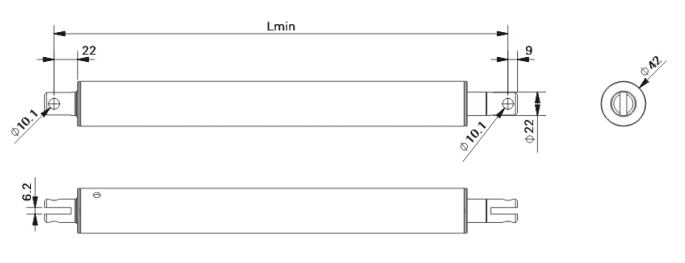

Drawings:
|

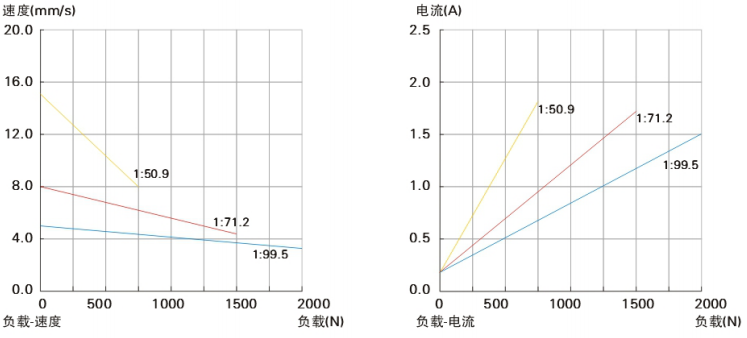

Voltage (V) |
Maximum load (N) |
No-load current (A) |
No-load speed (mm/s) |
Load current (A) |
Load speed (mm/s) |
Pitch(P) |
Ratio |
|
24 |
750 |
0.2 |
15 |
1.8 |
8 |
7.5 |
1:50:9 |
|
1500 |
0.2 |
8 |
1.7 |
4.4 |
5 |
1:71:2 |
|
|
2000 |
0.2 |
5.3 |
1.5 |
3.5 |
5 |
1:99:5 |
