Al03p Mini Linear Actuator With Potentiometer

Specifications:

Input voltage: 12VDC or 24VDC

Stroke length:50,100,150,200,250,300mm, can produce as your request.

Max. Load:900N

Max.speed:40mm/s

Potentiometer:10Kohm

Screw: ACME screw

Duty cycle:10%, work 2 minutes need to rest 18minutes.

Operational temperature: -26℃ to 65℃

IP54

Metal gears

Certificates: CE & RoHS

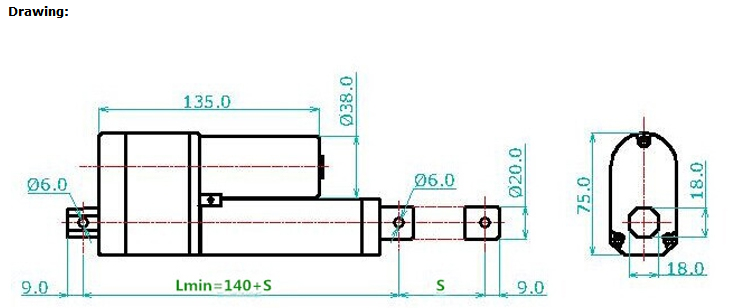

04

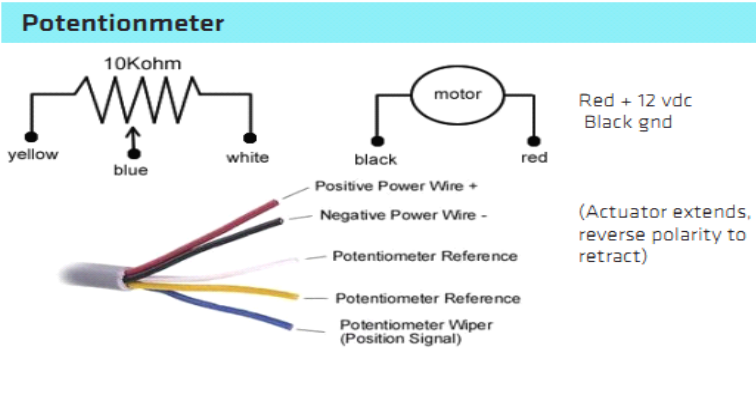

05



Type
Load
Noload speed

12V Current

24V Current

A
900N
5

3

1.5

B
750N
10

3.1

1.51

C
500N
20

3.14

1.57

D
300N
30

3.16

1.58

E
200N
40

3.02

1.56
