Details
Al02 Track Linear Actuators
Specifications
Input Voltage: 12VDC or 24VDC
Max.Load: 6000N
Standard Stroke: 30/50100/150/200/250/300mm,
can produce as your request.
Speed: 4-35mm/s
Duty Cycle: 10%, work 2 minutes need to rest 18 minutes
Ambient Temperature: 一25℃ to 65℃
IP Grade: IP44
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB≤50
Min.install size: stroke+157mm
Certificates: CE&RoHS
|

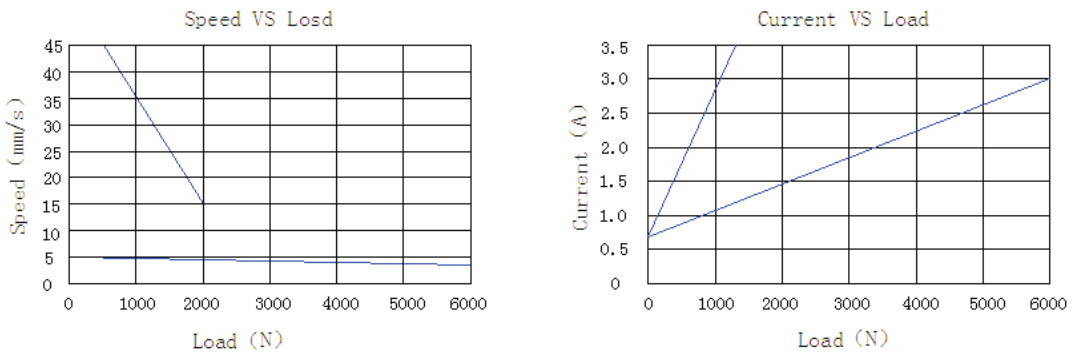

Load |
Speed |
|
6000N |
4mm/s |
|
3000N |
8mm/s |
|
1500N |
16mm/s |
|
1000N |
20mm/s |
